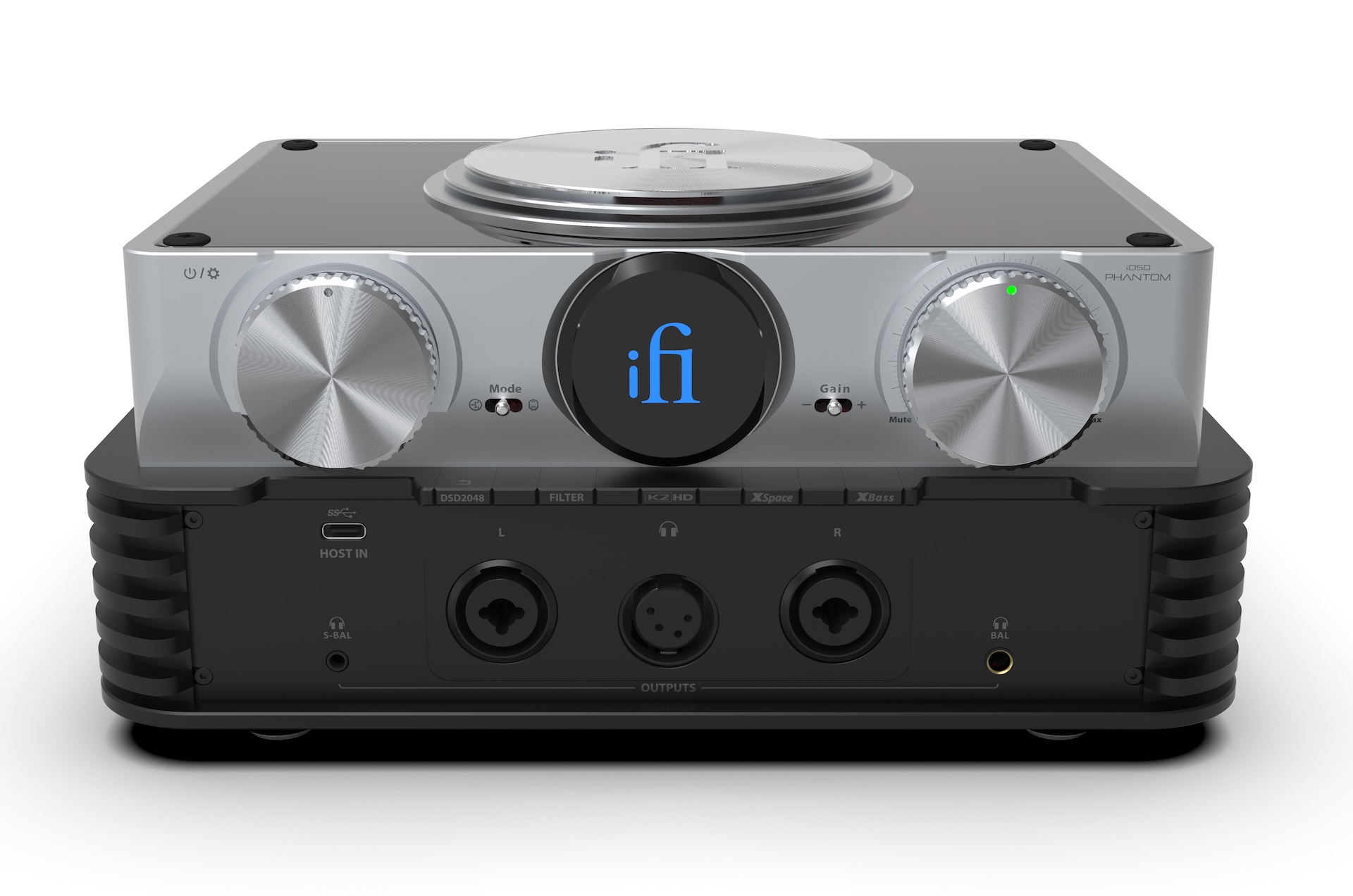

iDSD Phantom

Flagship, Reference-Class Streaming DAC/ Amp System
HK$35,999.00 HK$0.00
祗限香港市場 不適用於海外
如需更多信息, 請 Whatsapp: 98596329 或電郵: info@avantgardehongkong.com
有關中國國內銷售，請資詢本公司廣州分店。
購物滿HK$500以上,可免本地運費 (黑膠唱片例外)
描述

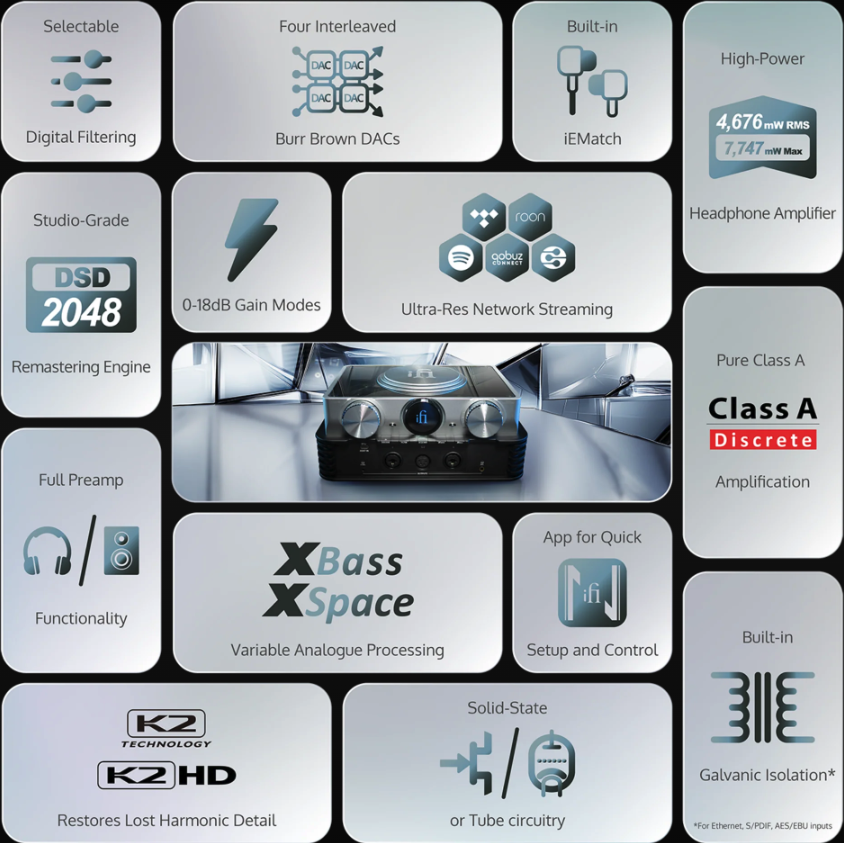

Uniting a reference-class DAC, ultra-resolution streamer and powerful headphone amp into one, the PHANTOM is a trinity of iFi innovation, engineered for complete musical immersion.

ANALOGUE INPUTS -
BALANCED HEADPHONES RMS ≥4,676mW/17.3V (@64Ω);
≥564mW/18.4V (@600Ω)
BALANCED LINE OUTPUTS VRMS 0-4.5V (Hi-Fi); 0-18V (Pro)
DIGITAL INPUTS 1x USB-B 3.0; 2x USB-A (Host);
1x USB-C (Host);
1x S/PDIF (coaxial)
1x AES3 (XLR);
1x RJ45;
1x M12;
1x Optical (SC);
1x BNC (Sync in)
DIMENSIONS 256 x 185 x 120mm
DNR 10 20KHZ ≥116dBA @ 600Ω Balanced;
≥115dBA @ 600Ω Single-Ended
HEADPHONE OUTPUT 1x 3.5mm S-Balanced;
1x 4.4mm Balanced;
1x 4-pin XLR;
1x 3-pin XLR (L/R);
1x 6.3mm (positive phase);
1x 6.3mm (inverted phase)
HI-RES SUPPORT PCM 768kHz; DSD512 (DSD2048 with Remastering)
LINE OUTPUTS 1x Balanced XLR (L/R); 1x RCA (L/R)
NET WEIGHT 3.6kg (7.93 lbs)
OUTPUT NOISE MAX OUTPUT 20 20KHZ <30uV(A) @ 600Ω Balanced;
<20uV(A) @ 600Ω Single-Ended
POWER CONSUMPTION <27W idle; 75W max.
SINGLE ENDED HEADPHONES RMS ≥2,311mW/8.6V (@32Ω);
≥144mW/9.3V (@600Ω)
SINGLE ENDED LINE OUTPUTS VRMS 0-2.2V (Hi-Fi); 0-9V (Pro)
SNR MAX OUTPUT 20 20KHZ ≥116dBA @ 600Ω Balanced;
≥114dBA @ 600Ω Single-Ended
STREAMING PLATFORMS Tidal Connect, Spotify Connect, Qobuz Connect, Roon, Airplay, DLNA, UPnP
THD+N <0.005% @ 16Ω Balanced (2.4V, 20-20kHz);
<0.01% @ 16Ω (1.27V, 20-20kHz)
