Type
Belt drive
Motor
24 Pole Synchronous
6 Point Body Contact Support
Spindle Support Acetal Ball Bearing
Motor Mount
Acetal Platform – Articulated
2 Ball Race Bearings and Silicone Motor Spring
Pulley
Super Precision Aluminium Alloy
Drive Belt
Precision Ground Polymer
Platter RG-1
Super Precision Aluminium Alloy
Two Part Linear Damped
2mm Bonded Acrylic Record Interface
Bearing Spindle RG-1
Super Precision Tungsten Carbide
Roundness / Concentricity and Finish < 1 Micron
Bearing Housing RG-1
Aerospace Grade Phosphor Bronze
Clearance < 4 Microns
Plinth Structure
Clear Cast Acrylic with optional finishes
Special Metallic Black or
Metallic Pearlescent White and Metallic Champagne
30mm Thick Top and Bottom Plinths
20mm Thick Sub-plinth and 15mm Mid-plinth

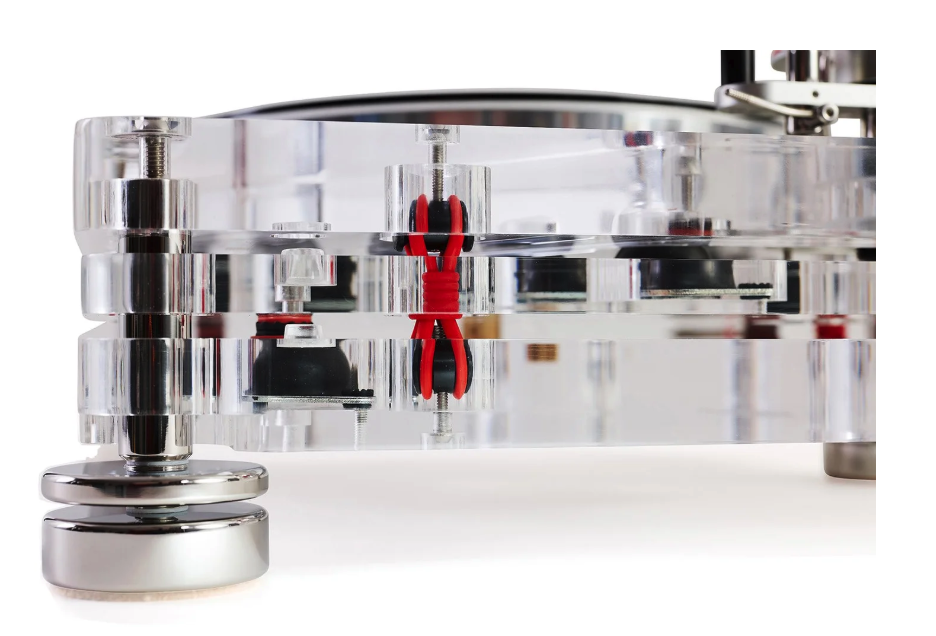

Isolation System
3 Stage Compliant and 2 Stage Rigid
12 Decoupler Sets and 12 Tuned Silicone Ring / Bobbins
3mm Acrylic Disc and Stainless Feet / Hard Rubber / Felt
Motor Drive P/S
Precision Crystal Referenced
Speeds
33.3 and 45 rpm (<0.2%)
Wow and Flutter
<0.1%
Rumble
<-85dB
